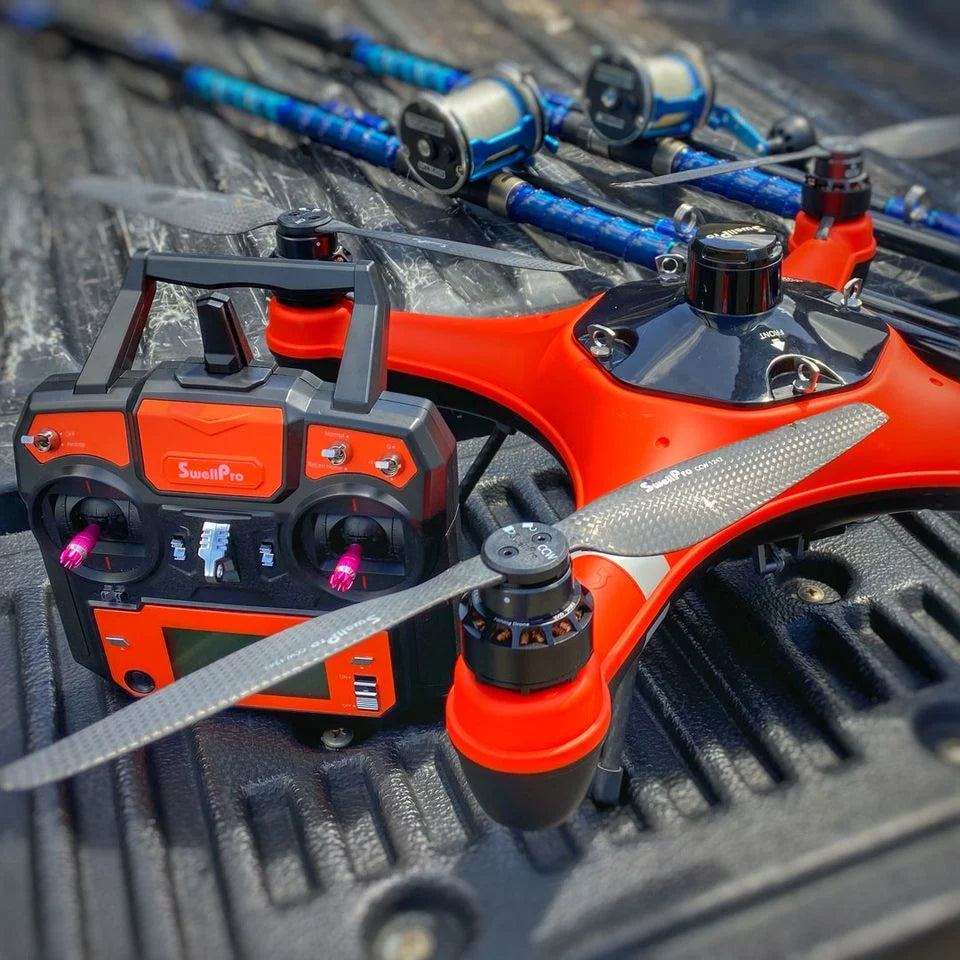

SwellPro Fisherman FD1 Waterproof Fishing Drone

SwellPro Fisherman FD1 Waterproof Fishing Drone

EMPTY DOM REMOVE PROTECTOR
$1,419.28
$0.00 $1,419.28
Sale Sold out
Taxes included.
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
Version

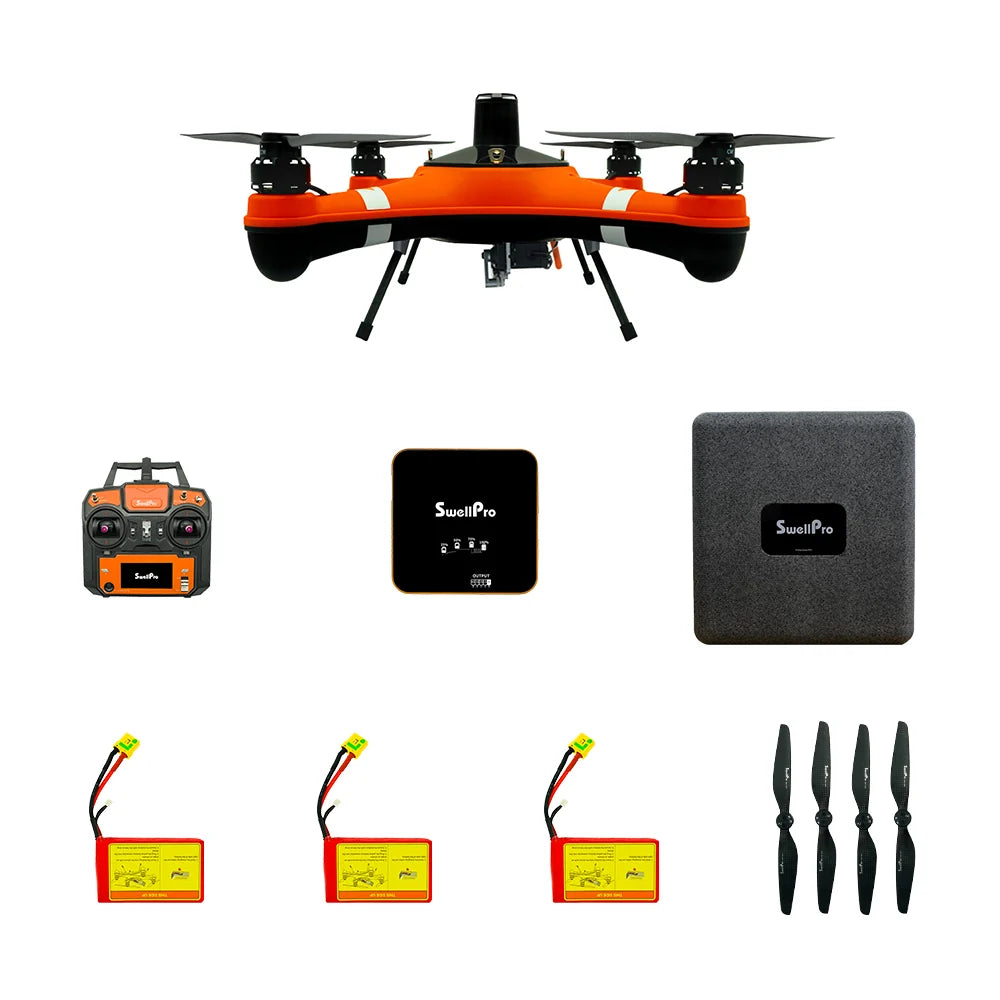

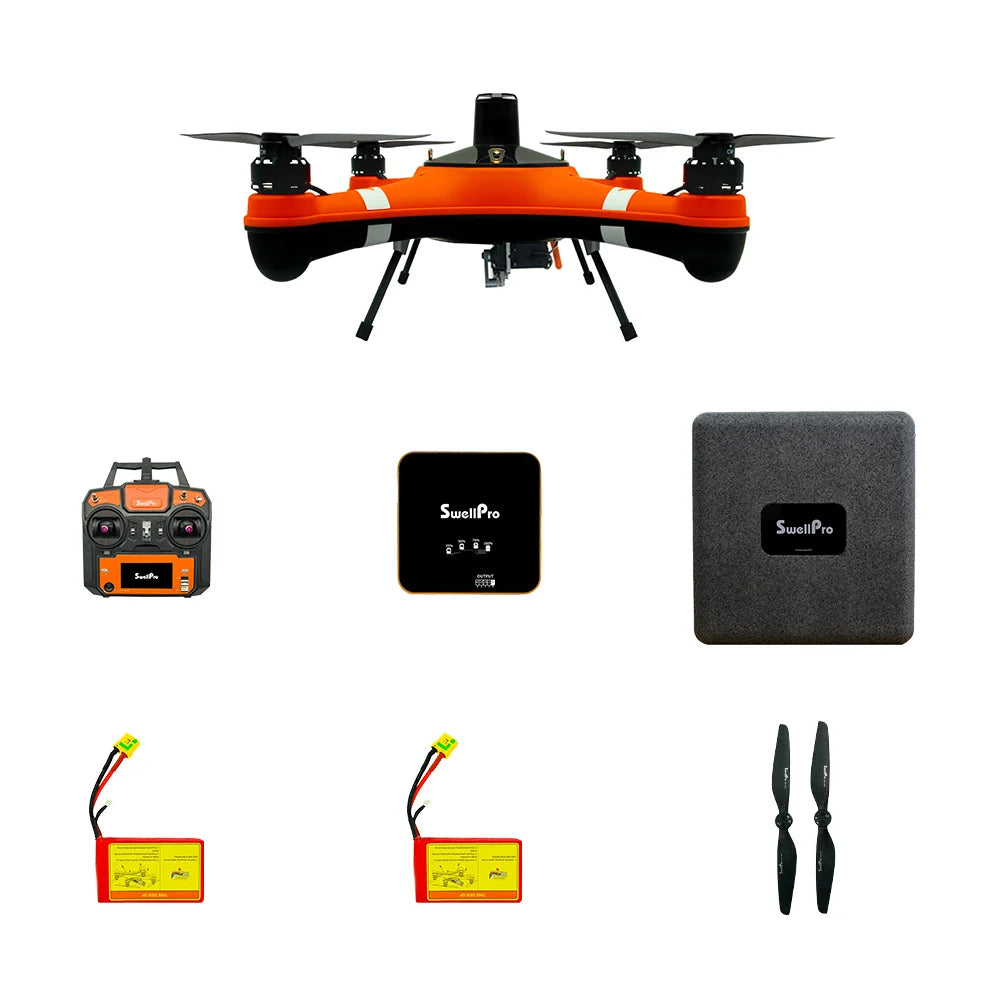

Extra Propellers & Battery
EMPTY DOM REMOVE PROTECTOR
...
......
...
EMPTY DOM REMOVE PROTECTOR
EMPTY DOM REMOVE PROTECTOR
View full details

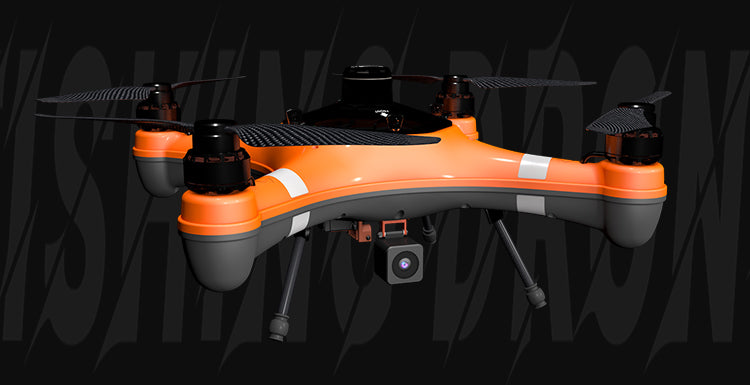

Fisherman FD1

Drone Fishing Made Easy

Fisherman FD1 is a simplified yet enhanced version of SplashDrone 3+.
It uses the same technology of SplashDrone 3+ but removed all the bells and whistles that don’t contribute to bait dropping. With a stronger propulsion system, Fisherman FD1 enables higher bait lit capacity, longer flight time and better wind resistance than SplashDrone 3+. Fly more baits further out and reel more fish in less hours.
2KG bait capacity
IP67 seawater proof
1.6KM casting range
30 min flight time
14.5 m/s wind resistance
Drone trolling
2kg Bait Capacity

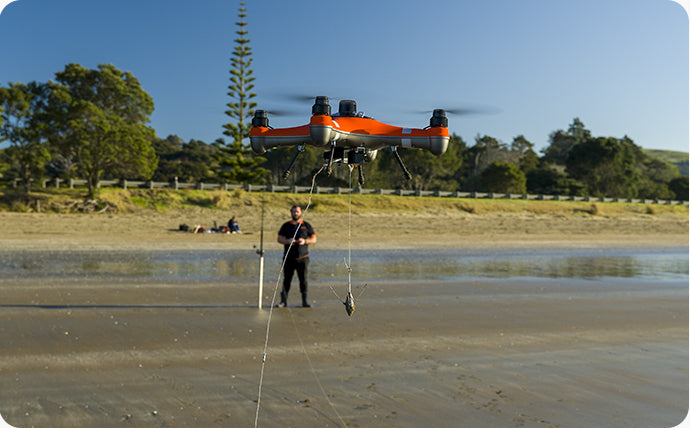

With its superior 2kg payload capacity, the Fisherman FD1 gives you the flexibility to carry more than 10 baited hooks or lures on each cast or drop heavy live baits for sharks or tuna.
Payload release options
The Fisherman FD1 offers two optional electric payload release mechanisms.Remotely and precisely drop baits at the target location with push-button convenience.

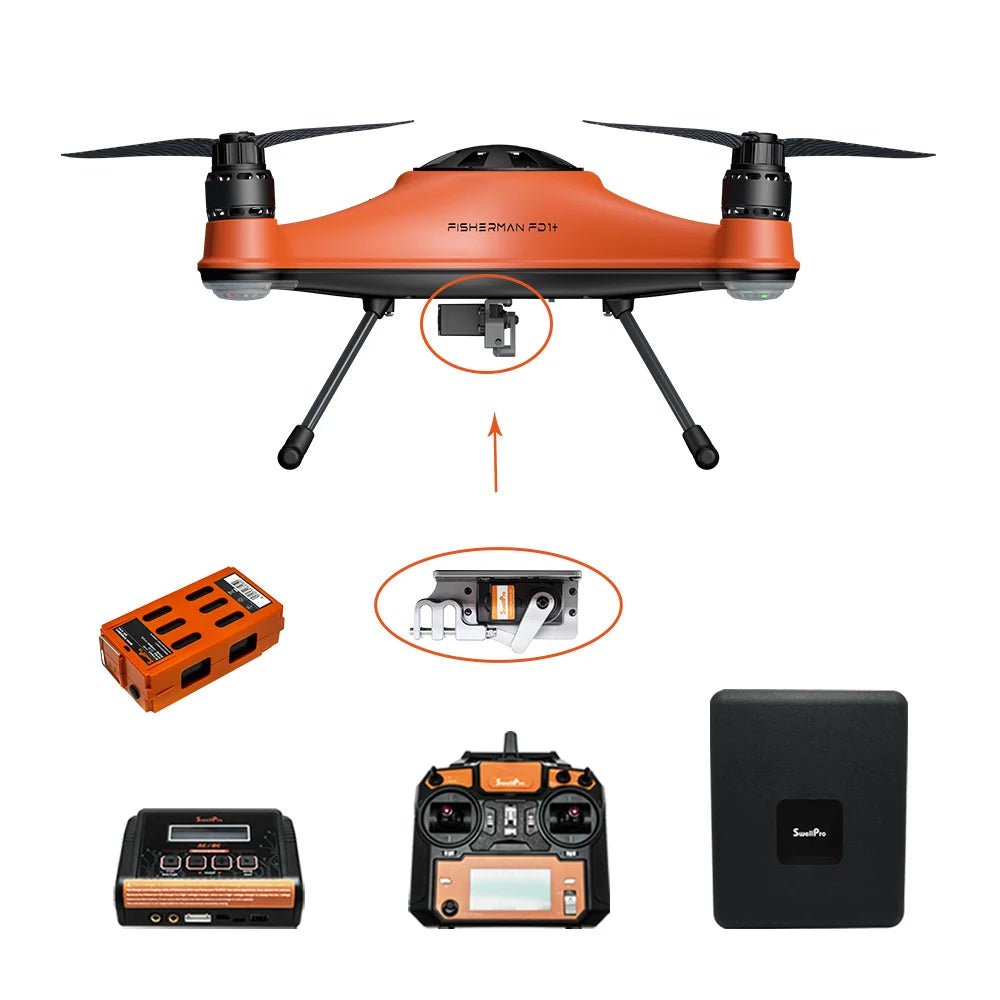

PL1-F
Mechanical payload release without camera for simple casting.
PL2-F
Payload release with an angle-adjustable camera for real-time vision.With the optional FPV goggles, you can view live HD video from the PL2-F to easily scout where the fish are. The camera’s wide dynamic range maximize details in sun-glare.
Sky-Trolling
You don’t need to drive a boat to troll for fish. With the Fisherman FD1 you can troll your line to attract pelagic fish. The optional TrollSafe release device can automatically release the line when you get a strike. Adjust the release to suit the conditions. TrollSafe can also protect your drone in case of a reel jam or a bird striking your line.
Trollsafe release device (optional)
The Trollsafe can be directly mounted on to the Fisherman FD1 or used in conjunction with PL1-F and PL2-F.

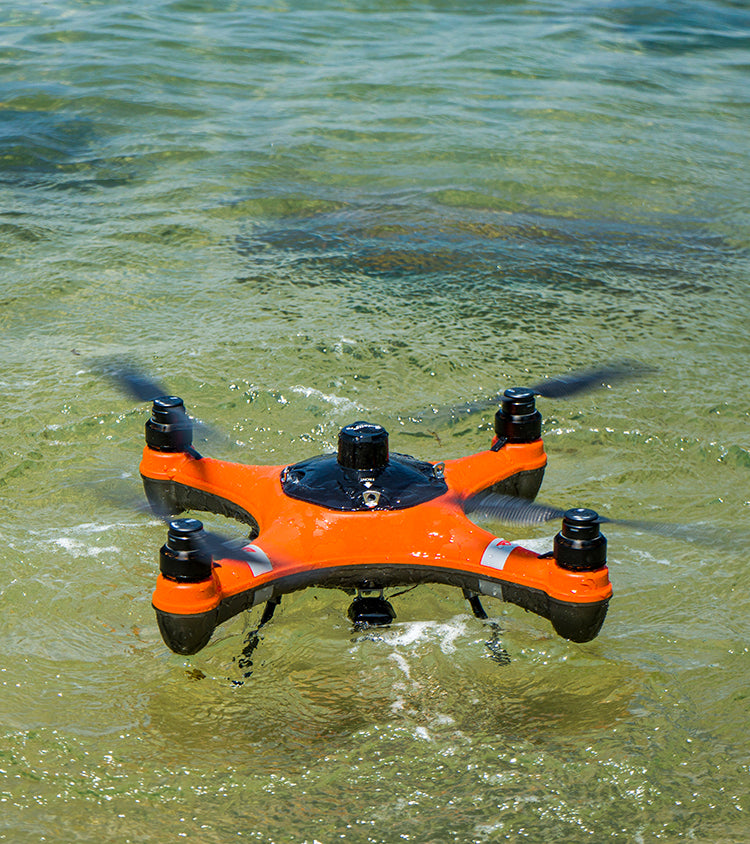

IP67 seawater proof
The fuselage of the Fisherman FD1 is made from industrial-grade ABS and is 100% water-sealed and pressure-tested.
Both the external waterproof motors and internal electronics are coated for further corrosion-resistance. No more tragedy of DJI-fishing-gone-wrong.
Go against the wind
The new propulsion system and flight computer are tuned to maximized control responsiveness and allow the Fisherman to fly in winds up to Beaufort Force 7.
Beaufort force
7
Wind speed
28–33 knots
32–38 mph
50–61 km/h
13.9–17.1 m/s
Multi-cast per charge
A new 6700mAh/4S high-voltage lithium battery provides up to 33 minutes of flight time (without bait), allowing up to 6 bait drop missions from a single battery charge (distance dependent).
1.6 km casting range
The new remote controller supports control distances of up to 1600m.You will probably run out of line before your run out of range with your Fisherman FD1.

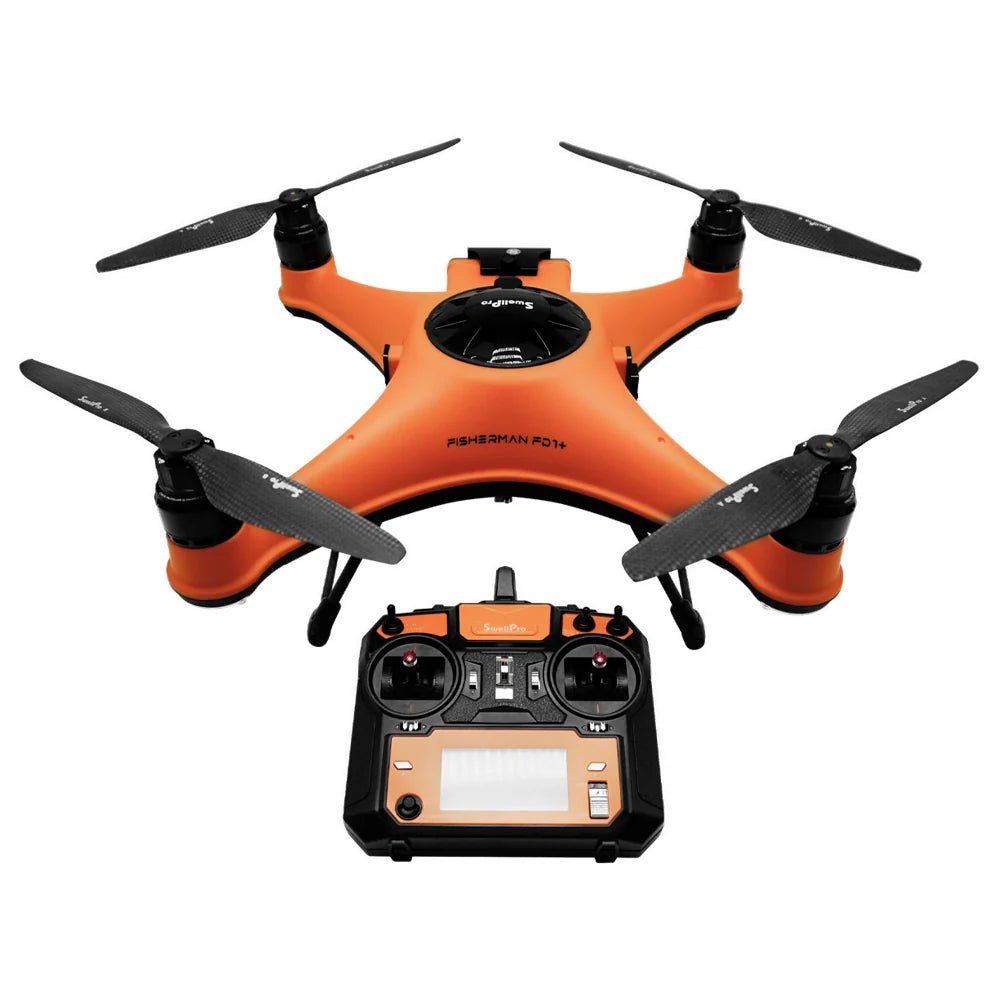

Simplified remote controller
The new dust-proof and splash-proof remote controller keeps flying simple.The integrated high-brightness 3-inch digital display provides critical flight information so you don’t need a phone or tablet to fly your baits.Even no vices can learn how to fly the Fisherman FD1 in just a few minutes.
Fly safe
Intelligent return home
After dropping your baits, simply flick the Return-home switch on the remote and the Fisherman FD1 will fly itself back to its take-off point and gently land automatically so you can focus on reeling the fish in!
New interference-resistant GPS & altimeter design
The new elevated GPS and altimeter pod provides more precise position and altitude control against interference. The new pod also makes sure the compass always “go north” in unusual magnetic fields.
Anti-Pendulum Feature
Drones may have a pendulum motion when flying with a payload. This feature can reduce the pendulum effect on the Fisherman by controlling the acceleration and de-acceleration.
Failsafe Return
In case of loss of signal, or when the battery level reaches a low threshold, the Fisherman drone will automatically release the fishing line and return to its starting point.
GL1 FPV Goggles (optional)
The optional Swellpro FPV goggles can be used as a display screen or on-face goggles to ensure a clear live view from the fisherman even in bright sunlight.
Swellpro Fishing Drone
Fly your baits out, reel the fish in. Simple!

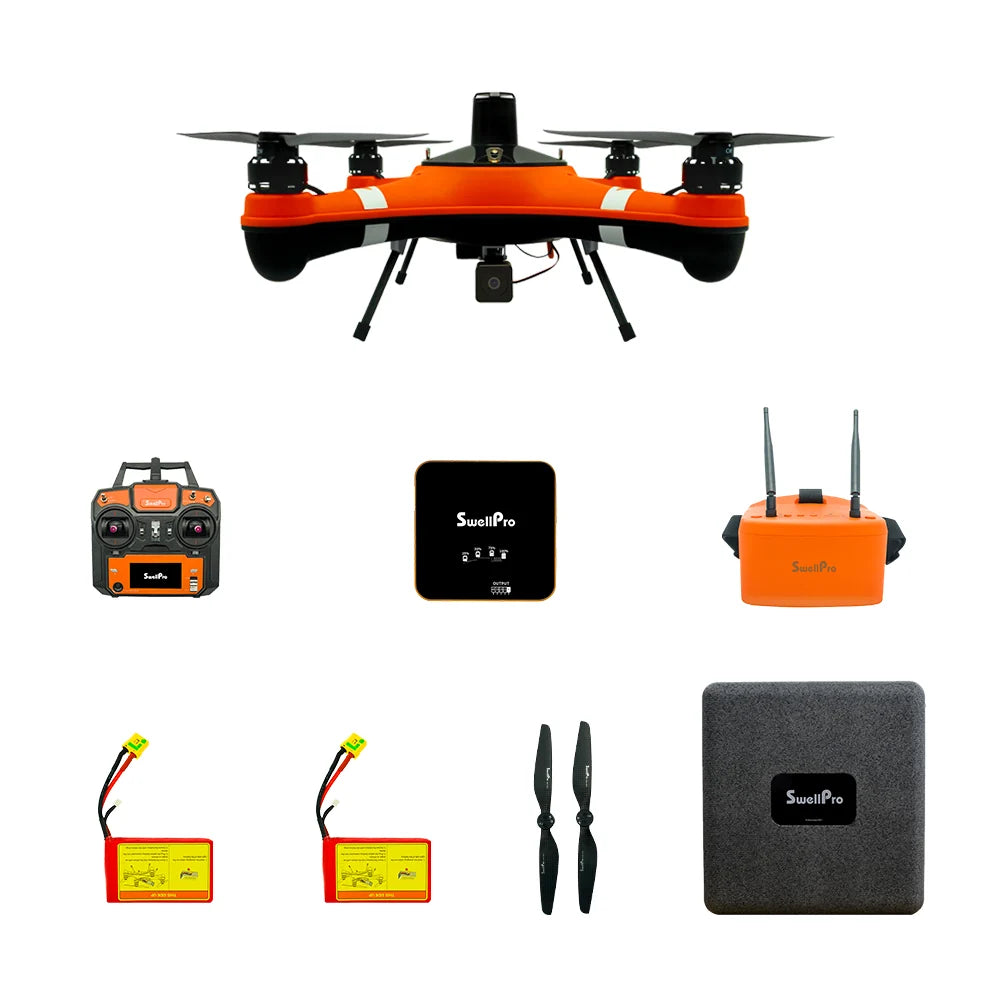

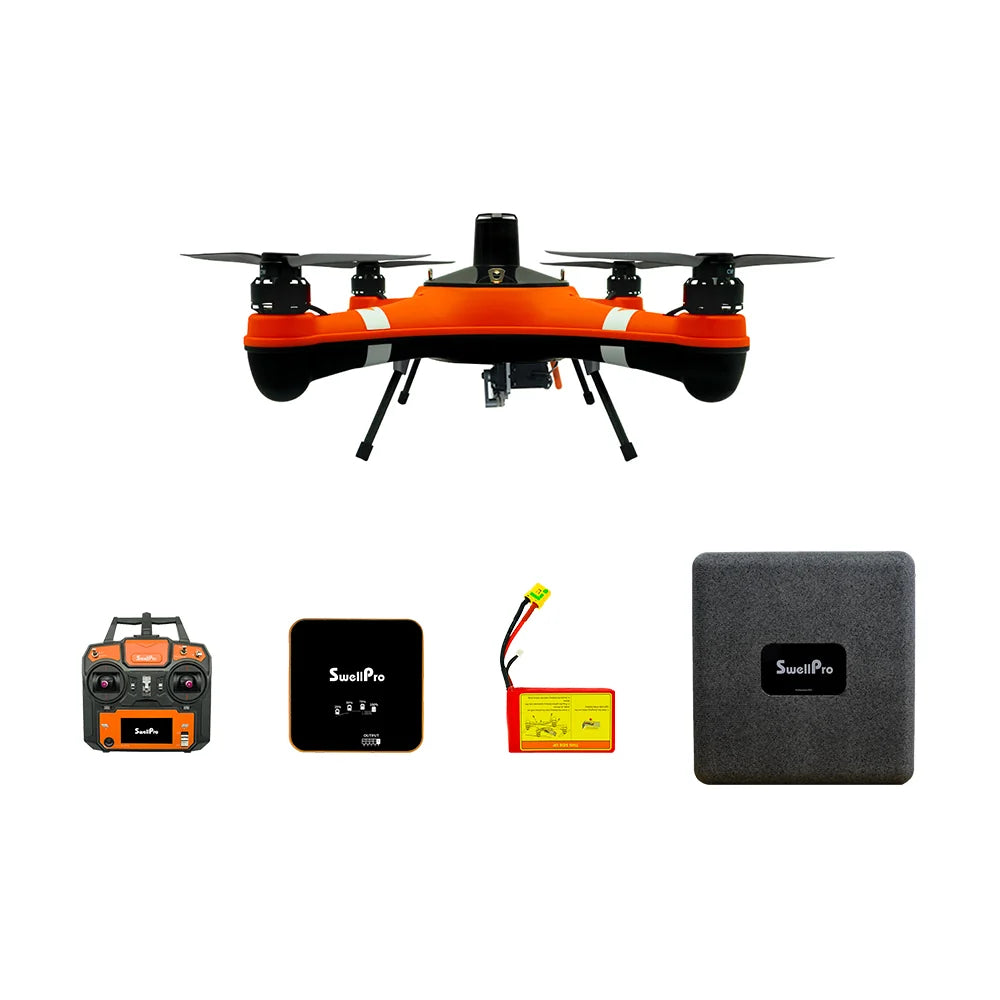

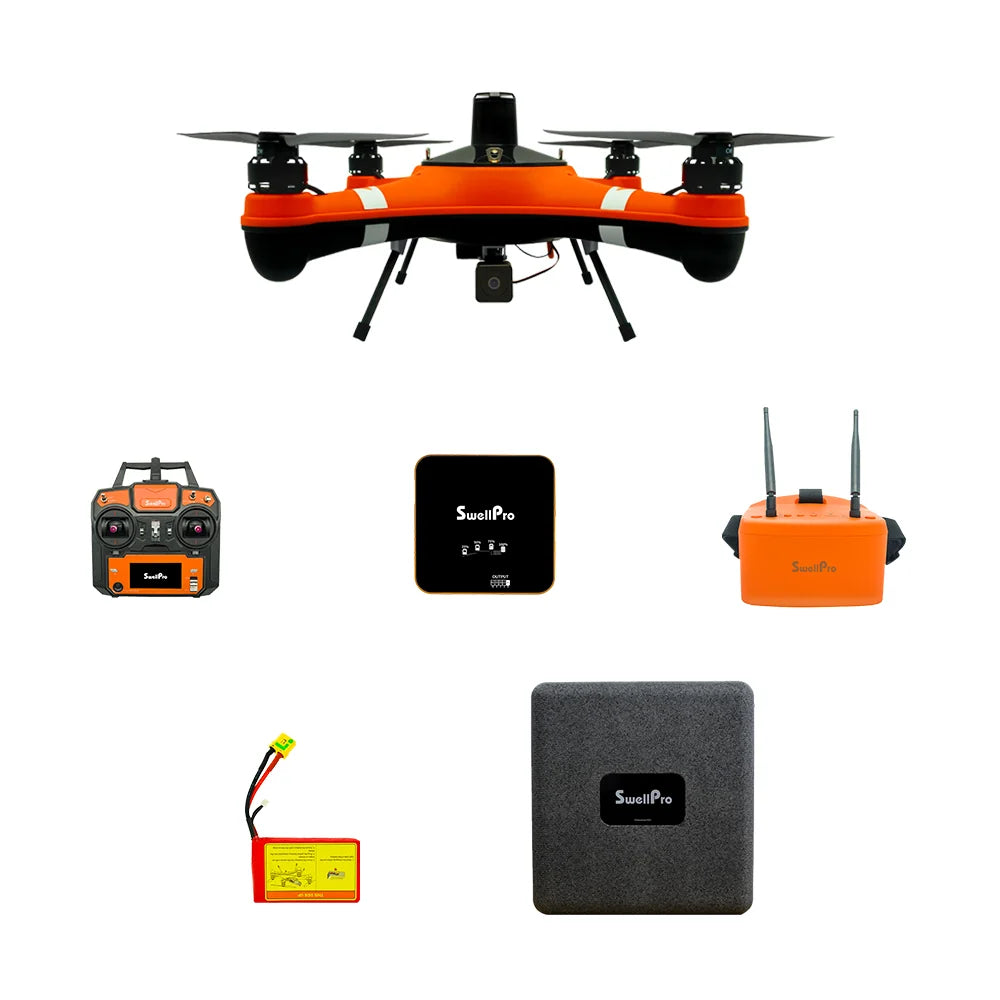

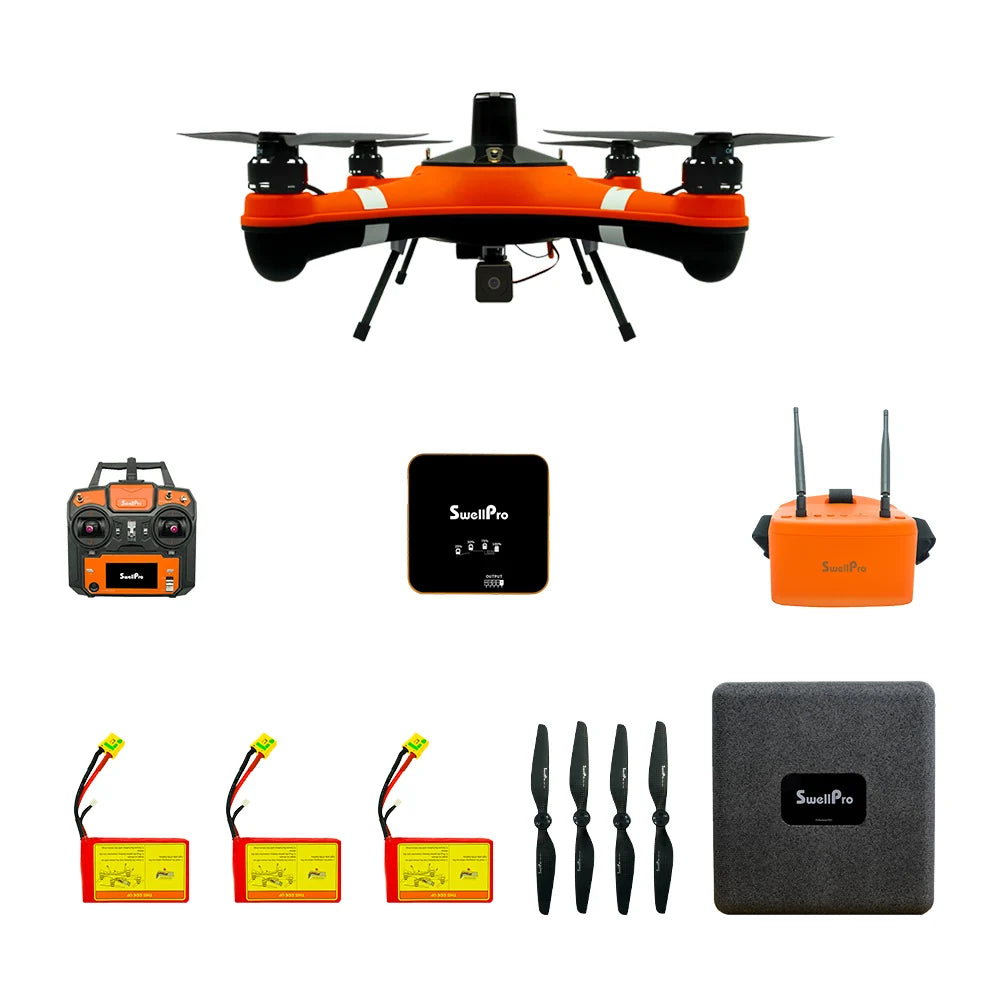

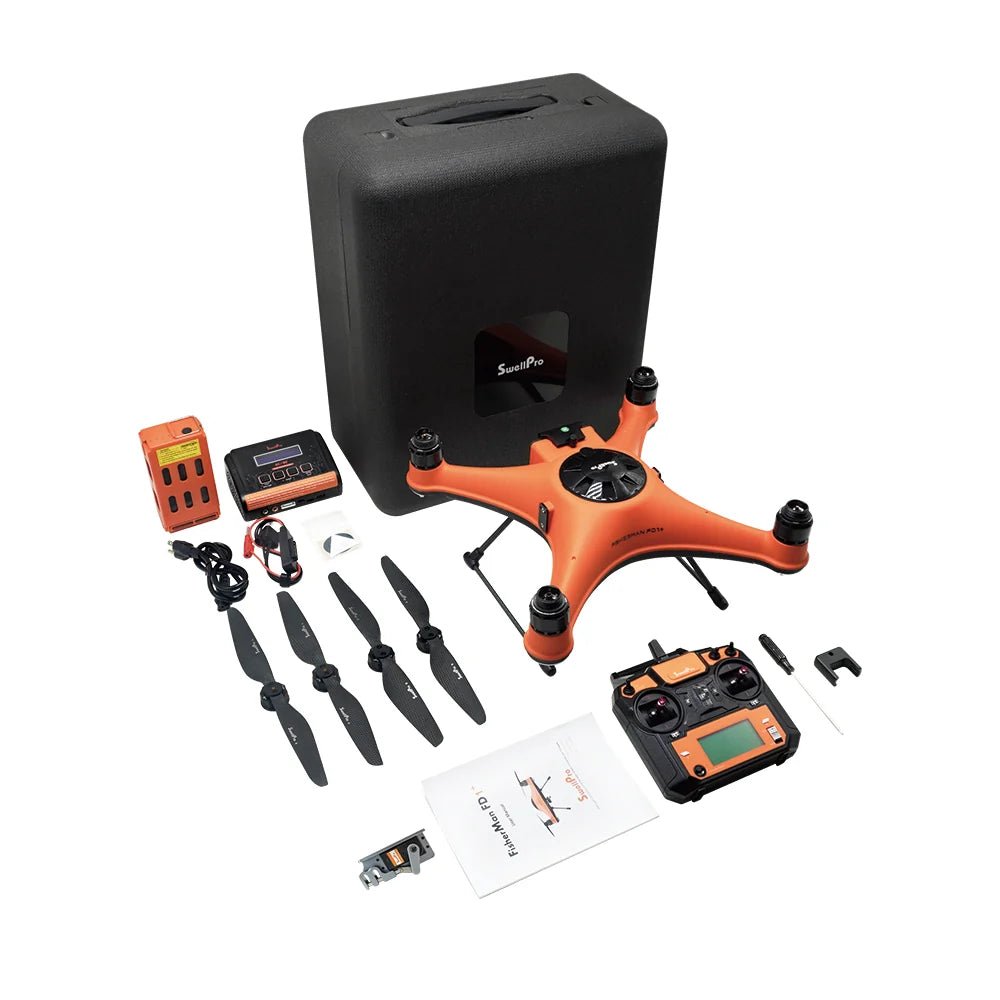

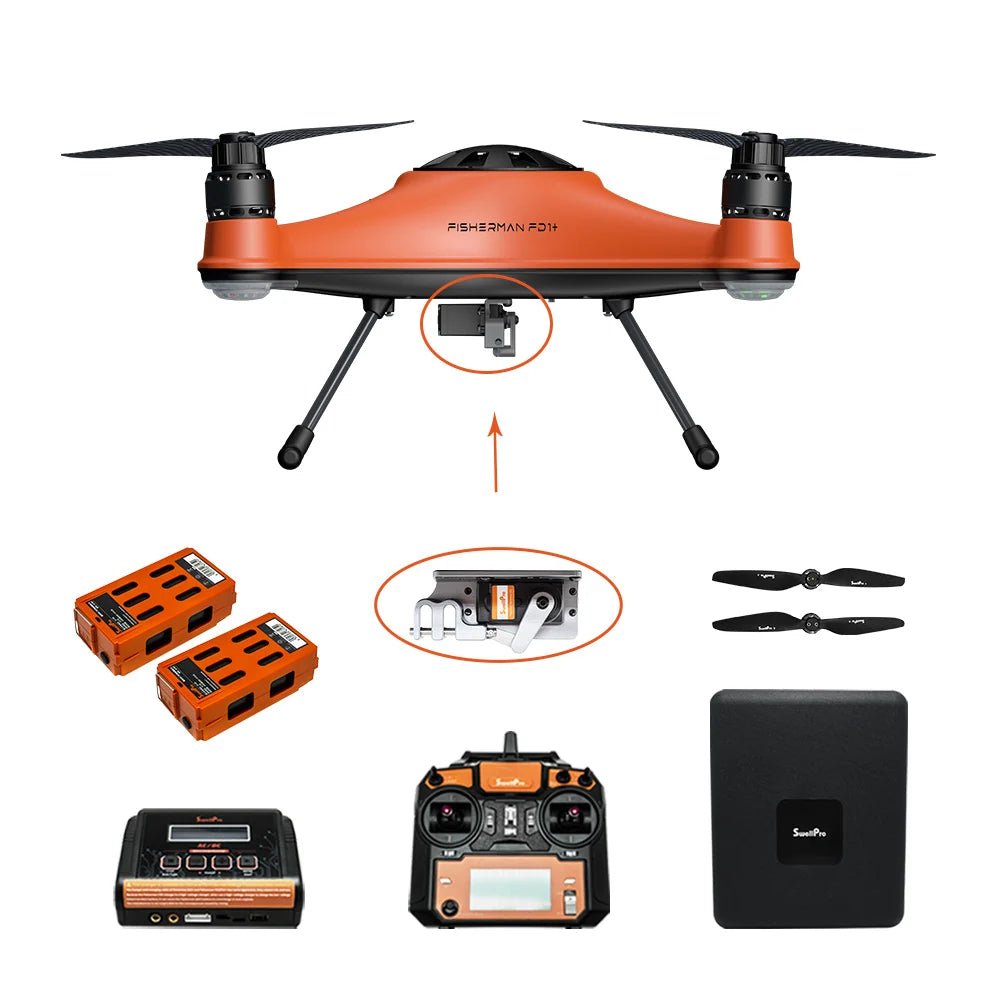

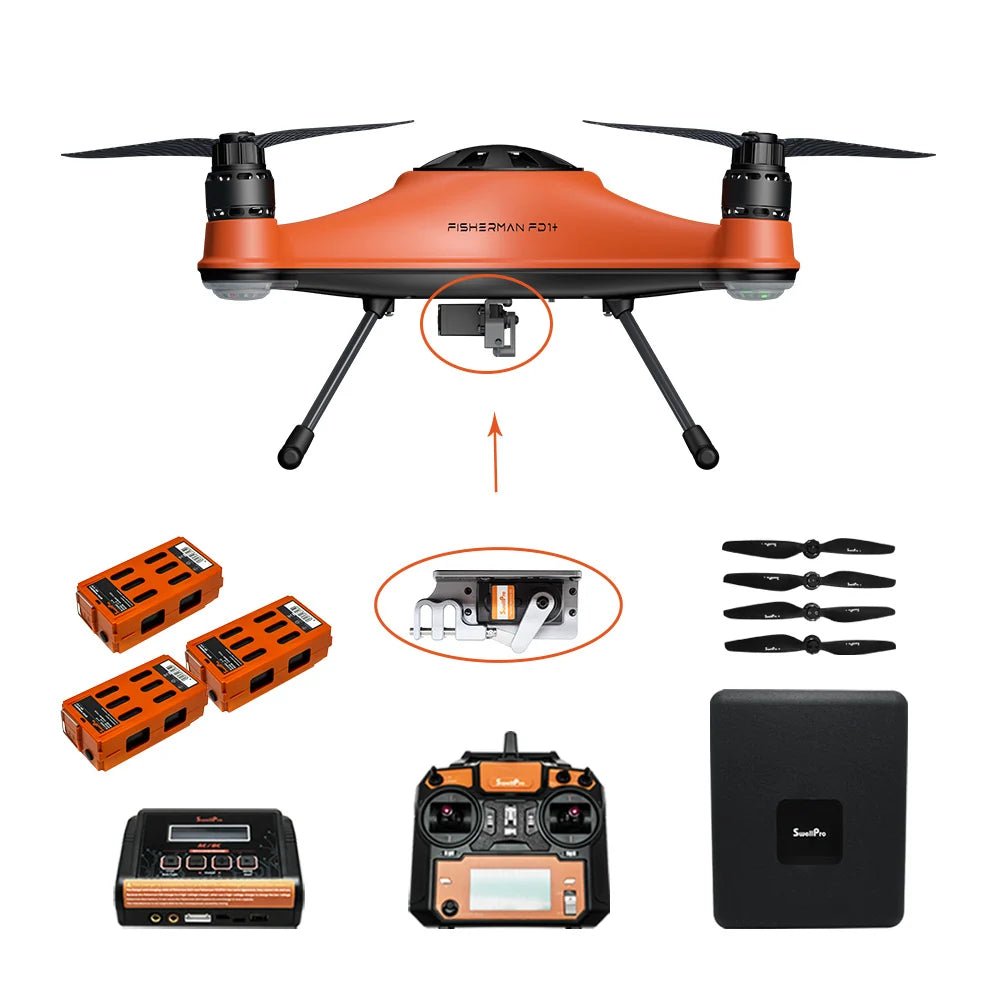

Parts Basic version FPV version
Aircraft
 X1 X1
Remote controller
 X1 X1
Propellers(pair)
 X2 X2
Drone battery
 X1 X1
Balance charger
 X1 X1
Charge cable
 X1 X1
Micro USB cable
 X1 X1
Manuals
 X1 X1
PL1-F payload release
 X1 /
PL2-F payload release
 / X1
VXT video transmitter
 / X1
GL-1 FPV Googles
 / X1
Carrying Case
 X1 X1

Aircraft

Waterproof Rating:IP67

Drone Weight (include battery and propellers)2050g

Axis Diameter:450 mm

Max Ascend Speed:4 m/s

Max Descend Speed:4 m/s

Max Flight Speed:10 m/s（GPS); 22 m/s（ATTI)

Max Tilt Angle:ATTI Fast Mode 25°；ATTI Slow Mode 12.5°

Max Altitude from Takeoff Point:120 m (GPS) / 1.3 km (ATTI)

Max Wind Speed Resistance:72km/h | 20 m/s | 39knot

Hovering Accuracy:±0.5m

Max Flight Time:30 mins (no wind & no load); (approx. 15 mins with 1.0kg, approx.12 mins with load of 1.5kg)

Max Flight Distance:1.6 km

Max Payload Capacity:2.0 kg

Satellite Positioning Systems:GPS/GLONASS

Flight Control:Hawk

Motor:#3509/740Kv

ESC:40A (flux)

Propeller:#1242 carbon fiber quick release propellers

Working Temperature:-10℃ ~ 40℃

Battery Type:4S 15.2V 6500mAh Lipo

Battery Weight:640g

Charging Time:90 min

Remote Control

Weight:378 g (without battery）

Size:174x89x190 mm

Frequency:2405 – 2475 MHz

Band Wide:5000 KHz

Coding Mode:GFSK

Effective Distance:1.3 km (No interference, open area)

Receiving Sensitivity:-105dBm

Transmitting Power:Less than 20dBm

Channel:6

Battery Type:6V (1.5V AAx4)

PL1-F

Waterproof:IP67

Max Payload Weight:2kg

Size:60.7*36.2*50mm

Cable Length:220mm

Weight:90g

PL2-F

Waterproof:IP67

Max Payload Weight:2kg

Size:122.5*50*39mm

Cable Length:160mm

Weight:150g

Sensor Size:1/2.7; support WDR (Wide Dynamic Range)

Resolution:2000TVL | 800x480

Lens:F/2.5 f/2.1

Input Voltage:5~36V

Video Link

Frequency:5645 ~ 5965MHz

Channel:40CH

Transmission Distance:1.6km (No obstacles, no interference)

Power:25mW

Input Voltage:7.4~26V

Size:32*25*10.4mm(天线140mm)

Weight:12.8g

Dual Usage FPV screen & goggle - GL1

Screen Size:5"

Resolution:800 * 480

Display Scale:16：9

Brightness:300cd /m²

Latency:<20ms

Lens:8 times Fresnel lens, light transmittance 92%, no distortion of light

Antenna:2 X RP-SMA male

USB:For charging（max charging current: 500mA）

Card Slot:Micro SD card (64G max)

Recording Resolution:VGA / D1 / HD optional

REC sound:ON / OFF

Recording Section:OFF / 3min / 5min / 10min

Resolution:30FPS

Compress Format:MJPEG

Video Format:AVI

Language:EN/CN

Power:DC5V / 2A（USB）

Battery:Built-in 3.7V / 2000mAh Lipo Battery

DVR ON - 2.5hour | DVR OFF - 3.5hour"

Size:180mm * 140mm * 84mm

Weight:393g
